Align 360® Unicompartmental Knee System Align (verb): to adjust parts of a mechanism to produce a proper relationship or orientation

The Align 360® À La Carte Knee Remodeling™ system is an innovative concept which allows the surgeon discretion in treating stages of degenerative knee conditions including unicompartmental, bicompartmental and tricompartmental disease with a matched instrument and component heritage. Our novel instruments all share a common foundation and provide simple and easy to use tools for reproducible and accurate results. The components are high performance cutting edge designs to allow patients to achieve superior clinical outcomes.

Features:

Align 360 Unicompartmental Knee System

Minimally invasive approach
Suitable for Medial or Lateral Compartment Disease

Instrumentation Philosophy

Instruments developed initially followed by component
Instrumentation allows surgeon to match Flexion/Extension gaps
Pin-less option
Mechanical Navigation
Femur first or Tibial first option

Component Design

High performance Anatomic Design
A/P and M/L curvatures match normal knee
Improved Kinematic and biomechanical function
Deep Flexion ROM
Metal tibial tray
Unique tibial fixation pegs and keel
Excellent range of sizing options

Align 360 Unicompartmental Knee System

The Cardo unicompartmental knee system offers a minimally invasive solution for patients with isolated arthritis in either the medial or lateral compartments

INSTRUMENTATION PHILOSOPHY

The Cardo unicompartmental knee system was developed from an instrument driven approach using design input from world renowned and highly experienced UKA surgeons.

Our patented and proprietary innovations have resulted in Cardo introducing the first unicompartmental knee system designed to allow the surgeon to match both flexion and extension gaps. Our instrumentation allows the cutting blocks to be placed onto the spacer blocks for cuts in both flexion and extension. The system is designed to be used in a pin-less fashion and has unique capabilities for mechanical navigation which are designed to enhance mechanical axis determination resulting in improved alignment. The bone preparation can be done with either a tibial first bone preparation or a femur first approach.

COMPONENT DESIGN

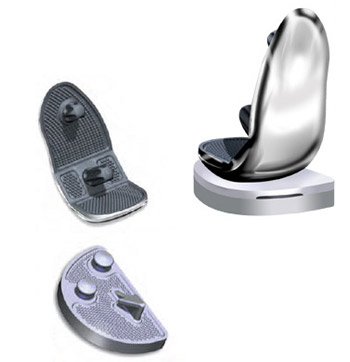

The femoral component is designed to accurately reproduce the dimensions and curvature of the femoral condyle. The implant is designed for high performance and deep flexion capabilities up to 150 degrees. The mediolateral curvature of the component provides excellent bone coverage, and in the event of less than perfect alignment the design will minimize stress concentration. The tibial component is a metal tibial tray with unique fixation pegs and keel design. The device uses a high quality ethylene oxide sterilized ultra-high-molecular-weight polyethylene (UHMWPE) for the tibial bearing component and gamma irradiated cast cobalt-chrome alloy for the tibial tray and femoral components.

The system includes six femoral component sizes and six tibial component sizes.
