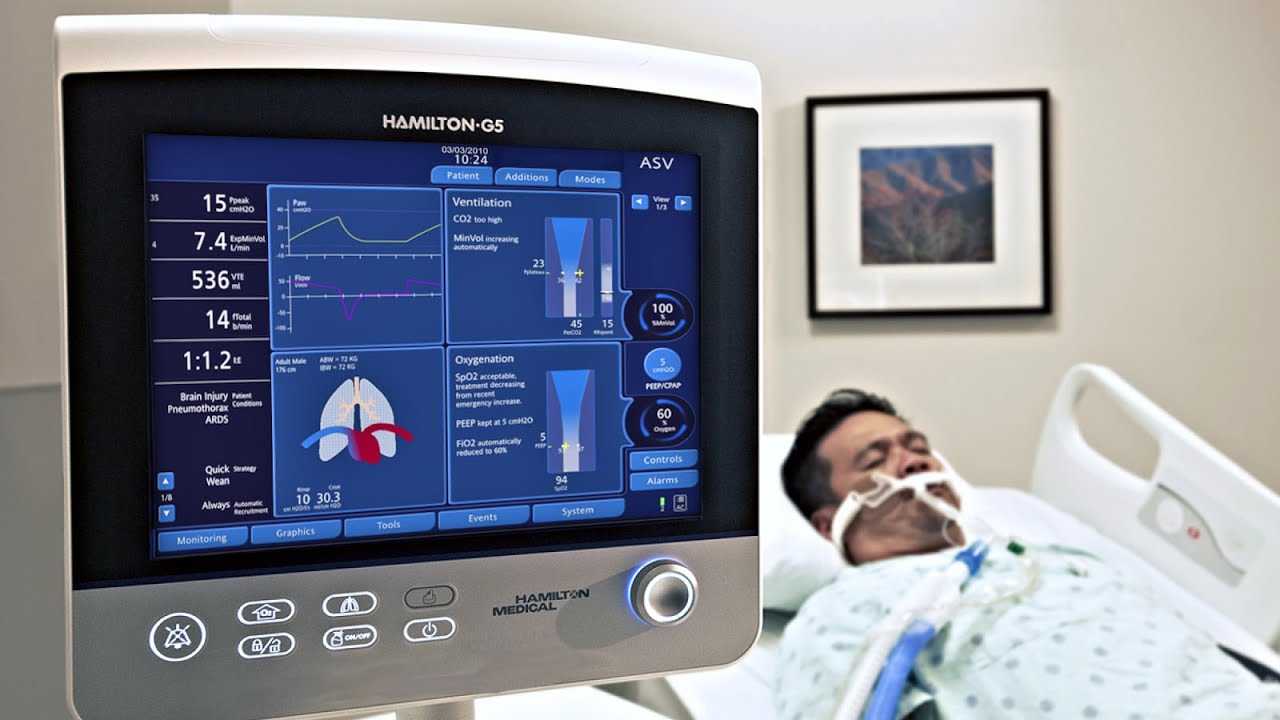

HAMILTON G5 VENTILATOR

Sale!

$15,999.00 $6,999.00

HAMILTON-G5 includes everything you expect from a high-end ventilator for neonatal to adult patients, offering safe ventilation for the smallest with responsive flow triggering and volume monitoring. It was the first ventilator to provide fewer user interactions and fewer alarms with Adaptive Support Ventilation (ASV). The Hamilton-G5 offers an optional integrated cuff pressure controller to reduce VAP and tracheal injuries.

In stock

SKU: HAMILTON G5 Category: Tag: Brand: Hamilton

The modular high-end ventilation solution

HAMILTON-G5 is Hamilton Medical’s most modular high-end mechanical ventilator. A large set of standard features and options allow you to tailor the HAMILTON-G5 to your needs. The integrated cuff pressure controller IntelliCuff® continuously monitors and automatically adjusts cuffed tracheal and tracheostomy tubes, providing real-time optimization of cuff pressure.

The Protective Ventilation (P/V) Tool provides a repeatable method to assess recruit ability and find the best PEEP based on respiratory mechanics, as well as providing an easy and repeatable method for performing recruitment maneuvers. The HAMILTON-G5 also supports transpulmonary pressure measurement. In addition to many other features, the HAMILTON-G5 also includes Hamilton Medical’s standardized Ventilation Cockpit user interface and the intelligent ventilation mode, Adaptive Support Ventilation

The HAMILTON-G5 was designed for the most complex, critically ill patients in all ICU settings where lung protection is of paramount importance. The comprehensive monitoring package and state-of-the-art diagnostic tools for lung assessment support you in making the best possible clinical decisions for your patient.

A wide range of additional options and features, such as Heliox and high flow oxygen therapy, allows you to tailor the HAMILTON-G5 to fit the requirements of your ICU and meet the needs of each individual patient.

Efficiency through innovation

The HAMILTON-G5 lets you optimize clinical resources and skills while reducing the cost of ownership and management overhead, and most importantly, it can help you reduce the patient’s time on the ventilator. The HAMILTON-G5’s intuitive interface simplifies the ventilator setup and translates into easy training and less chance of operator error.

The HAMILTON-G5 is the first ventilator to provide:

  • Fewer user interactions and fewer alarms with Adaptive Support Ventilation (ASV)
  • Integrated cuff pressure control to reduce VAP and tracheal injuries
  • A Ventilation Cockpit that is designed to improve safety through intuitive operation and monitoring
  • Proven closed-loop ventilation that automatically applies lung-protective strategies, reducing the risk of operator error and promoting early weaning
  • Safe ventilation for the smallest with responsive flow triggering and volume monitoring

The HAMILTON-G5 FEATURES:

  • The fully customizable display features waveforms, loops, trends, and dynamic lung model
  • Interface for storage media, video output, PDMS and patient monitor
  • State-of-the-art ASV closed-loop intelligent ventilation modality
  • Optional P/V Tool software for advanced patient assessment
  • Includes most invasive and non-invasive modalities
  • Touchscreen interface with one-knob operation
  • Optional extended battery backup
  • Neonatal option available

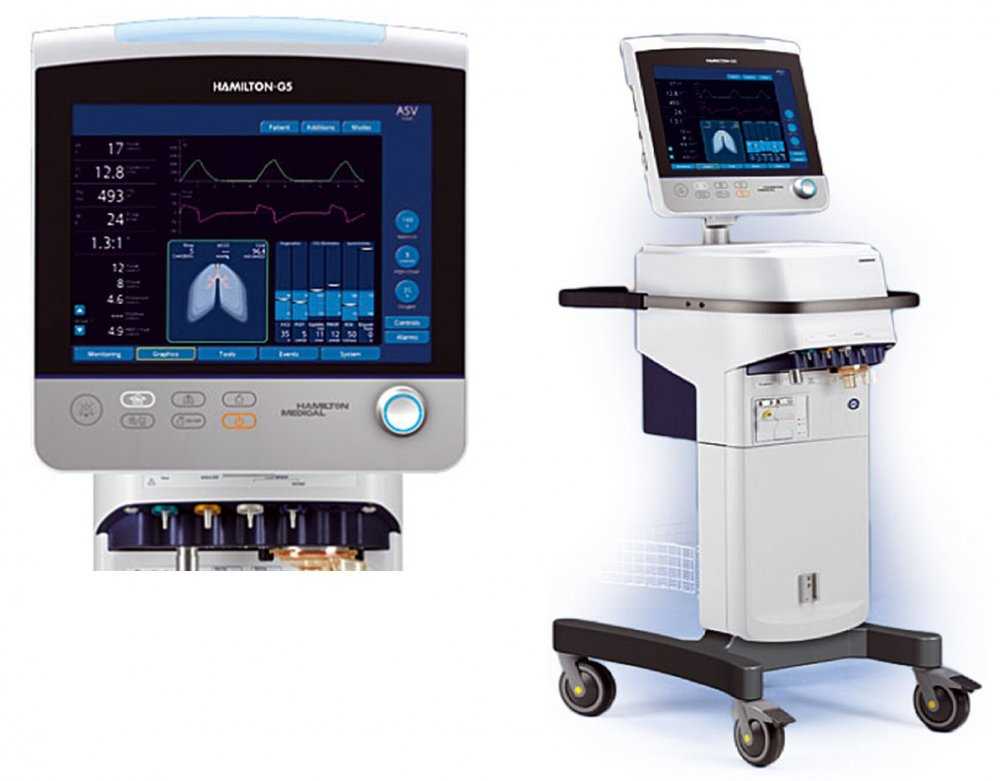

HAMILTON G5 Ventilator

HAMILTON-G5 Specifications:

  • Manufacturer: HAMILTON MEDICAL
  • Model No. : G5
  • Serial No. : 9261
  • Ref. No. : 159002
  • Software: 2.6
  • Operating Hours: 1327 Hours
  • Manufacturing Date: 2014-09-29
  • Input Voltage: 100-240 VAC
  • Frequency: 50/60 Hz
  • Current 100V: Max. 27A
  • Current 240V: Max. 12A
  • Power Consumption: 210 VA max.
  • Degree of Protection: IP21
  • Air Supply : 2-6 bar (200-600 kPa / 29-86 psi)
  • Pmax : 6 bar (600kPa / 86 psi)
  • Flow Max. : 120l/min
  • Oxygen Supply : 2-6 bar (200-600 kPa / 29-86 psi)
  • Main Patient Outlet :
    Outside Diameter: 22mm
    Inside Diameter: 15mmSpecial Functions:
    – Pneumatic Integrated Nebulizer
    – Manual breath
    – O2 enrichment
    – Suctioning tool
    – Sigh
    – Apnea back up  ventilation
    – Tube Resistance Compensation (TRC)
    – Standby
    – Print screen
    – Screen lockAdd On Options:
    – RS232 Interface
    – P/V Tool Pro
    – IntelliCuff
    – ASV
    – CO2
    – Nebulizer Module

Reference Link

HAMILTON G5 VENTILATOR Manufacturer Information

HAMILTON G5 VENTILATOR Brochure
