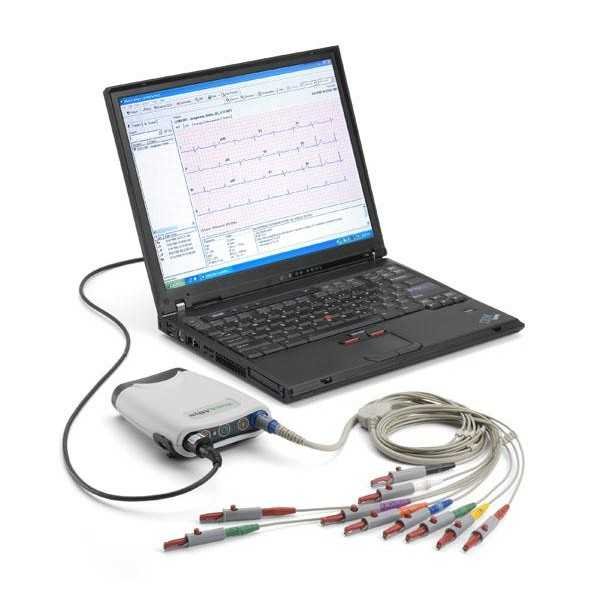

Welch Allyn CardioPerfect ECG system

Record, view and interpret resting ECGs.

Welch Allyn CardioPerfect Workstation Bundle with ECG, Spirometry and Ambulatory BP Choice features advanced analytical software as well as several complete crucial modules for complete cardiopulmonary testing.

The Welch Allyn CardioPerfect rest-ECG system from Welch Allyn is an electrocardiograph, dependent on the usage of a personal computer including all the benefits that come with it. These advantages include the automatic saving of this information, the capacity to ship (by email ) the listed information through the world wide web, the printing on conventional white A-4 paper. The 12 ECG leads are listed concurrently and are real-time visible on the screen of your own personal computer. With the help of a typical printer, the ECGs may be printed in various manners (to be put by the user). ECGs from precisely the same patient can be contrasted on the track over time.

Improve accuracy, enable immediate access to individual diagnostic information and enhance your practice’s efficiency with the Welch Allyn PC-Based Resting ECG, part of the CardioPerfect Workstation suite. Automatically transfer patient information and test information into most EMRs without redundant work steps, misidentified patients, or delays by copying, scanning and shredding ECG reports. Utilize this upgradeable method to leverage your investment by adding pressure ECG, spirometry and/or ambulatory blood pressure (ABPM) modules in your convenience to give you complete cardiopulmonary testing capabilities.

• Use with a single computer or enterprise-wide network, with or without an EMR
• Help improve patient care by overlaying previous ECGs to spot differences
• Improve exam efficiency with a 4×3 preview on screen prior to printing
• High quality and reliable readings help eliminate repeat ECGs
• Automatic ECG measurements speed physician review and interpretation
• Interpret and edit a report on screen for patients down to 1 day old
• Easily monitor patients with intermittent arrhythmias
• Programmable report formats print on 8.5 x 11 paper, using your current printer
• 12-channel Resting ECG
• ECG preview, eliminating repeat ECG’s
• ECG interpretative analysis offering a silent second opinion
• Cardioperfect software Suite
• Save or print results as required
• Intermittent arrhythmias can be easily monitored
• Changes highlighted via serial comparison of previous ECG’s
• Operates on a stand-alone PC, Network or on thin clients
• Connect to your EMR – check for compatibility
• 1 Year warranty on the ECG device

• Additional Information:

  Specifications:

  • Digital ECG Module
  • Dimensions (L*W*D): 147 mm by 108 mm by 32.5 mm
  • Weight 222 grams
  • Integrated defibrillation protection
  • Computer interface: USB
  • 10 Lead patient cable with electrode adaptors
  • Frequency response: 0.05 – 150 Hz
  • Sampling rate: 600 sps

  Filters:

  • 25 to 35 Hz muscle tremor filter
  • Selectable 50/60 Hz

  Lead sensitivity:

  • 5, 10 and 20 mm/mV
  • Selectable QTc formula: Bazett, Hodges or Fridericia

  Operating System:

  • Windows XP, Windows Vista, Windows 7, Windows 8

Welch Allyn CardioPerfect Includes:

• Welch Allyn SE PRO-600 Digital EKG Module
• Welch Allyn PRO-60024 USB Cable
• Software & Notebook Included
• 10-lead patient cable/ banana /AHA
• Pack of Alligator Clips
• CardioPerfect Workstation Software CD
• CardioPerfet Resting EKG Quick Start Guide
• CardioPerfect Setup GuideInstallation by our spouse on location
• CardioPerfect Interface box
• CardioPerfect Patient cable
• PRO-600 recorder
• 50 Blue Sensor adhesive electrodes
• MEANS interpretation program for adults
• Resting ECG functionality; 12 channel automatic or manual mode, standard ECG dimensions, rhythm, average complexes, ECGs sequential comparisons
• Prolink USB cable port
