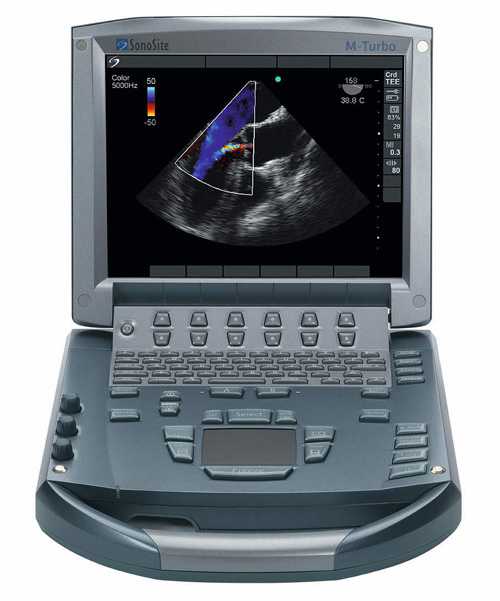

Sonosite M Turbo Portable Ultrasound System

Sale!

Original price was: $9,999.00.Current price is: $5,555.00.

Sonosite M Turbo ultrasound system provides you breathtaking picture quality with sharp contrast resolution and tissue delineation. This ultrasound gear lets you visualize detail, enhancing your ability to distinguish pathology, vessels and pathology.

In stock

SKU: Sonosite-M-turbo Category:

High-Resolution Imaging

Sonosite M Turbo is a compact ultrasound imaging Program out of SonoSite, featuring the image quality and Performance Required to meet your Varied needs

Sonosite M Turbo improves upon the Micromaxx with even sharper imaging, while retaining the rugged durability SonoSite is famed for keeping. It is by far the most common PoC mobile and offers processes and several applications such as EM, MSK, and regional anesthesia that have been developed and expanded over what the Micromaxx offered.

Sonosite M Turbo Ultrasound System provides crystal clear image quality ranging from the stomach to pelvic imaging. This ultrasound system enables you to picture detail, improving your ability to distinguish vessels structures and pathology, which makes it the ideal ultrasound system to fulfill any clinician’s requirements.

Designed for adaptability and durability

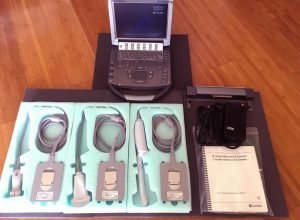

Sonosite-M-Turbo-for-saleIt has the fluid-resistant keyboard and a magnesium case Along with living a Drop Test at three foot. The M-Turbo increases to the challenge with a quick boot-up system and the broad assortment of software and transducers when emergencies threaten. It manages data management with ease and is PC/MAC friendly, along with having two USB interfaces for easier access. It employs a needle visualization tool and boasts DICOM capacities and wireless.

SonoSite is a famous pioneer in the ultrasound area, and also the M-Turbo ultrasound system is no exception. The main focus of the cutting edge design of this M-Turbo is over and beyond anything else on the market today. It is designed for adaptability and durability, ensuring reliability and consistent performance. With a vision that is unsurpassed and technologies, the M-Turbo has become the most desired portable hand-carried ultrasound gear currently available.

Key features include;

  • Premium image quality
  • Drop analyzed at 3 feet/91.4 cm
  • Splash immune user interface
  • Fast boot-up time
  • Easy to run
  • Battery-powered and wireless capabilities for accurate mobility
  • Magnesium case for lightweight strength

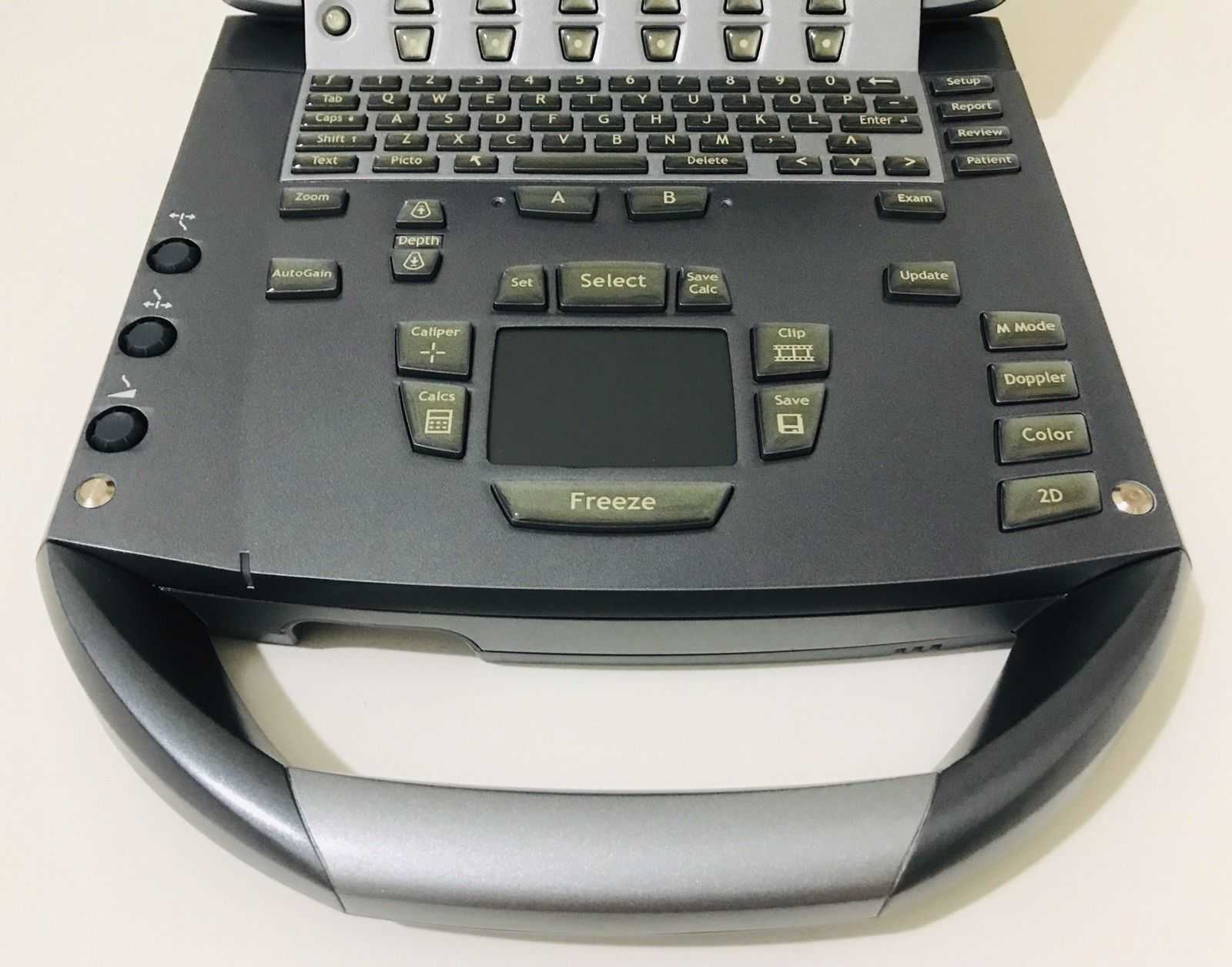

  • A backlit keyboard is simpler on the eye.
  • Premium image quality
  • Splash resistant user-interface
  • Wireless connectivity

Sonosite M Turbo Applications:

  • Breast
  • Cardiac
  • Emergency
  • Musculoskeletal
  • Pain Management
  • Portable
  • Radiology
  • Vascular
  • Veterinary

Sonosite M Turbo Transducers

  • HFL38x/13-6
  • HFL50x/15-6
  • P21x/5-1
  • L25X/13-6
  • L38xi/10-5 MHz
  • C60x/5-2 MHz
  • SLA/13-6 MHz
  • ICTx/8-5
Sonosite M Turbo Probes
  • Convex (1~6Mhz)
  • Endocavity_Curved Type (5~8Mhz)
  • Micro-Convex (5~8Mhz)
  • Linear (3~12Mhz)
  • Linear 25mm
  • Hockey stick (<13Mhz)
  • Phased Array_Adult (1~5Mhz)
  • Phased Array_Pediatric (3~8hz)
  • TEE_Adult (3-7Mhz)
  • Pencil CW (2Mhz)

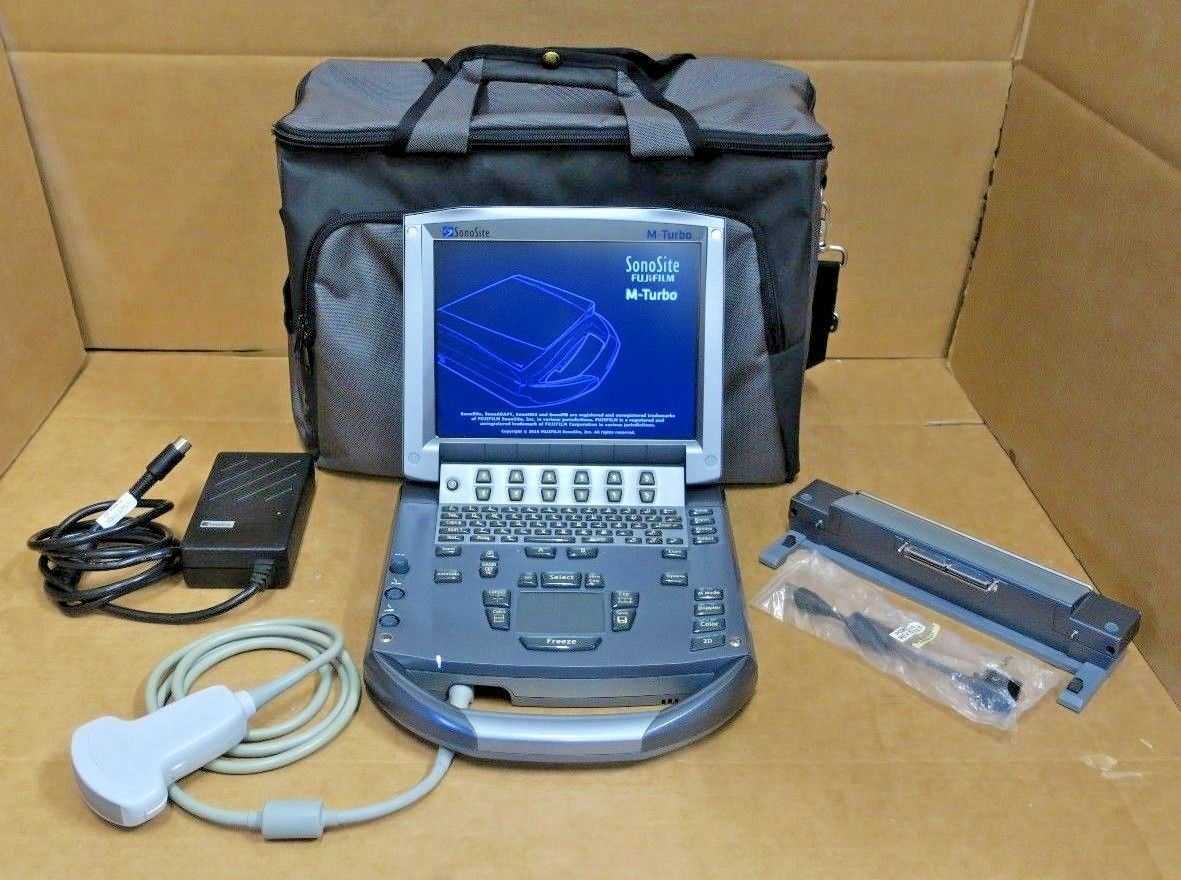

What’s Included in this Sonosite M Turbo:

1X Sonosite P21x M-Turbo 5-1 MHz Transducer 5-1 MHz,

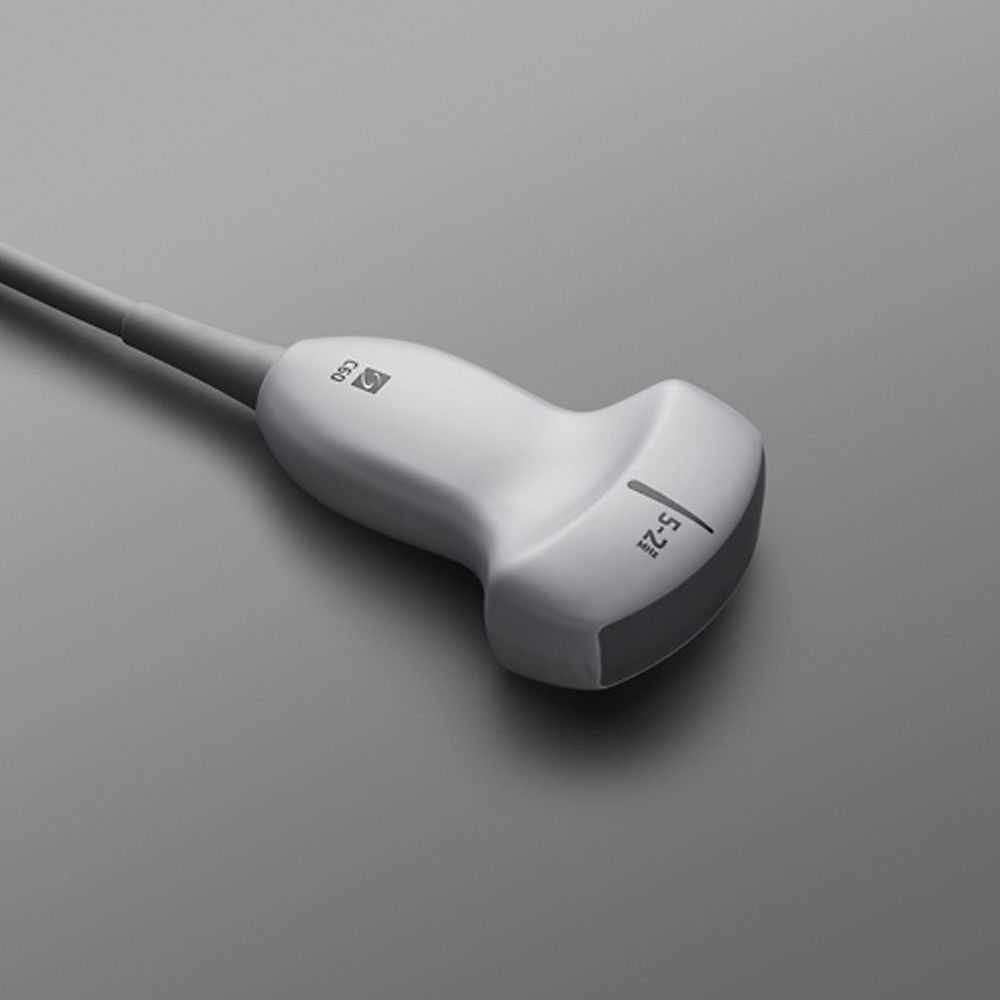

1x SonoSite C60x Probe – Convex Transducer
1x SONOSITE SLAx FOR M-TURBO EDGE S SERIE TRANSDUCER PROBE

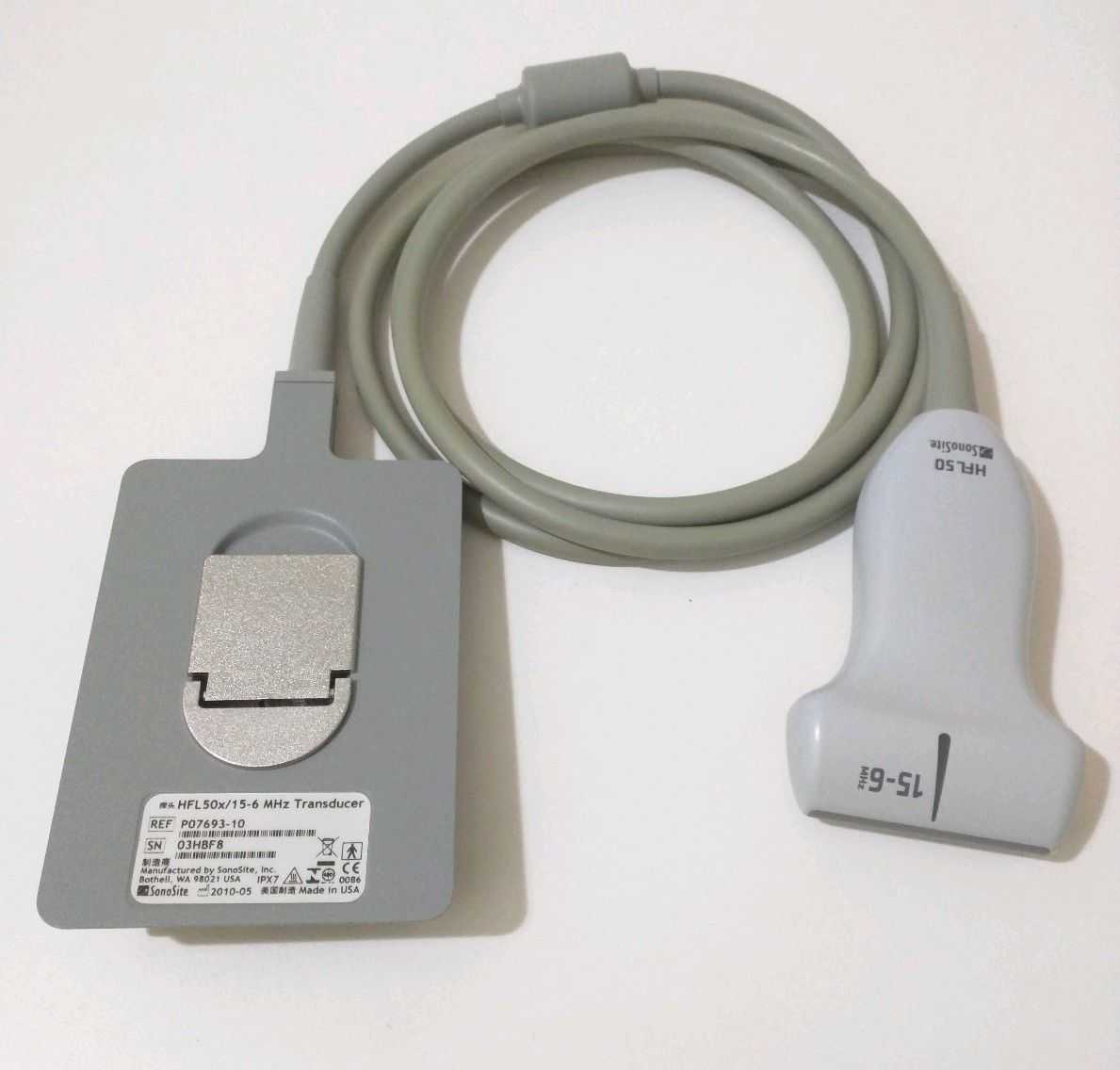

1x SONOSITE HFL50x FOR M-TURBO

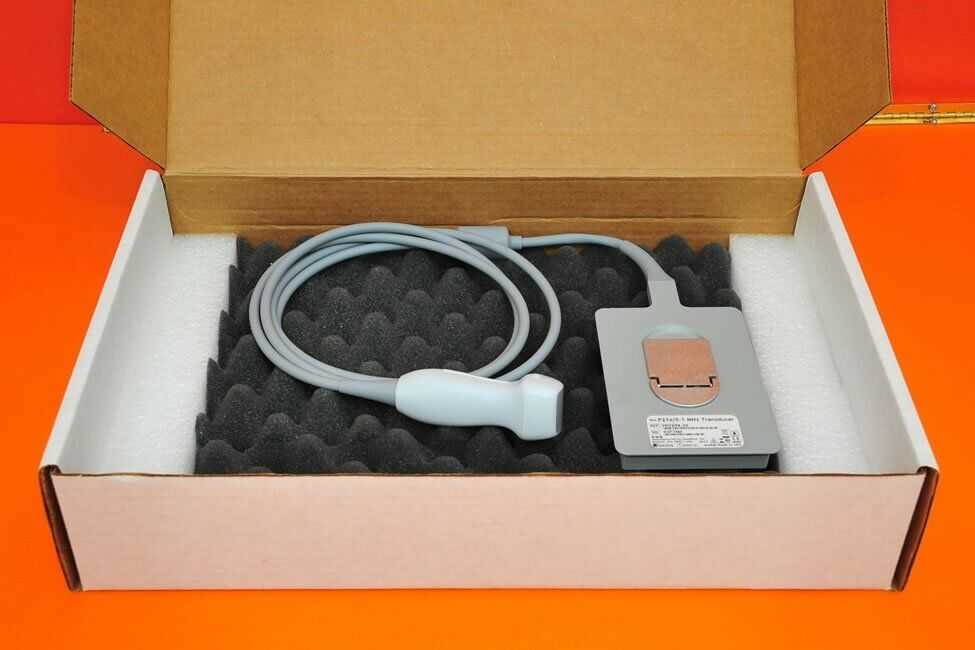

1x Sonosite P21x/5-1 MHz Transducer

Reference Library

Sonosite M Turbo Portable Ultrasound System Brochure

Specifications

Dimensions

  • Height: 3.1” (7.9 cm)
  • Width: 10.8” (27.4 cm)
  • Depth: 11.9” (30.2 cm)
  • Weight: 6.7 lbs (3.04 kg)

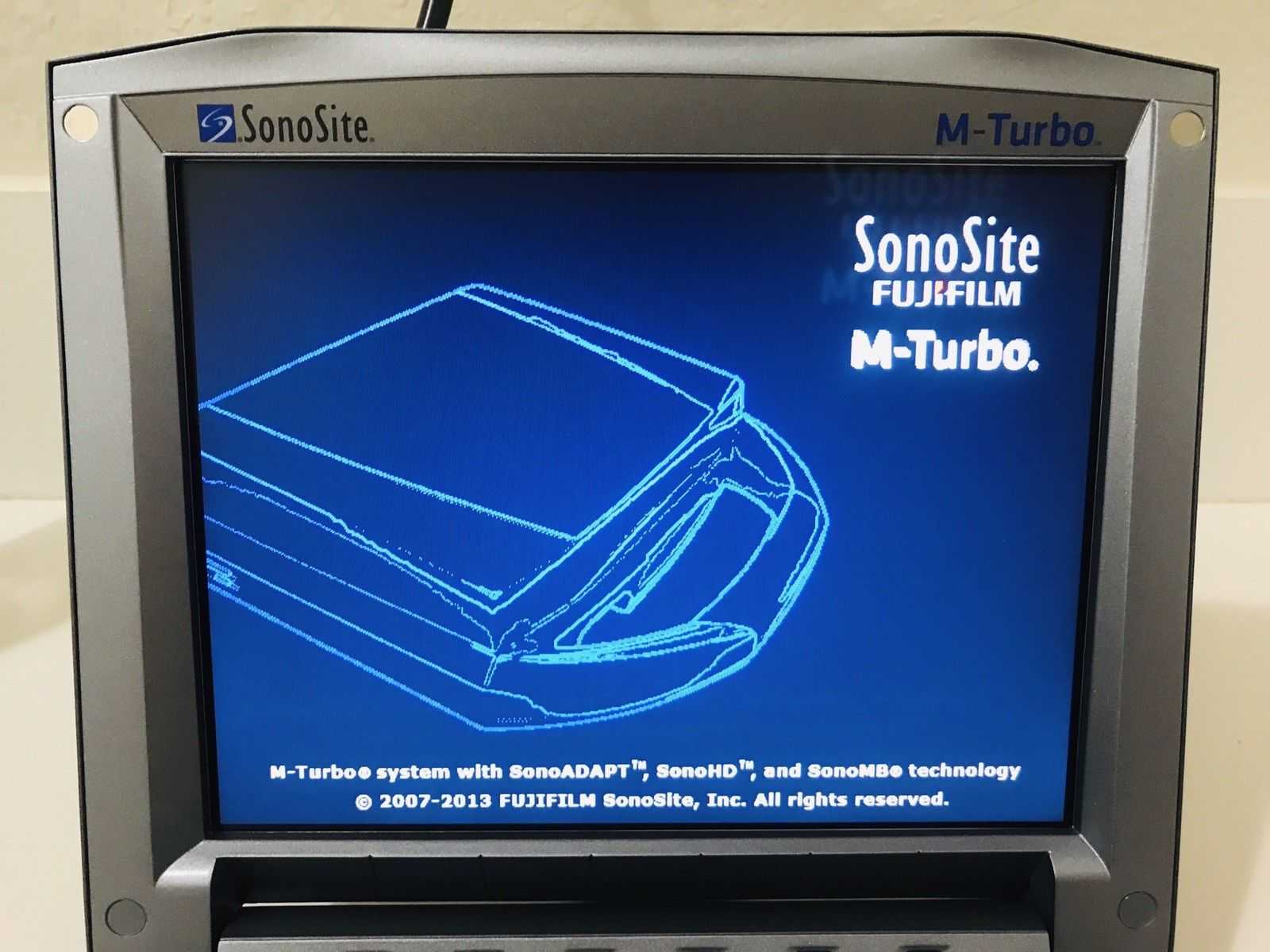

Display

  • Type: Liquid Crystal Display (LCD)
  • Size: 10.4″ (26.4 cm)

Power

  • The system operates via battery or AC power
  • Rechargeable lithium-ion battery
  • AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output

Onboard Image and Clip Storage/Review

  • 8 GB internal Flash memory storage capability Potential to store 30,000 images or 960 2-second clips
  • Clip Store capability (maximum single clip length: 60 seconds)
  • Clip Store capability via either the number of heart cycles (using the ECG) or time base Maximum storage in ECG beats mode is 10 heart cycles. Maximum storage in time base mode is 60 seconds
  • Cine review up to 255 frame-by-frame images

Measurement Tools, Pictograms, and Annotations

  • 2D: Distance calipers, ellipse, and manual trace
  • Doppler: Velocity measurements, pressure half-time, auto and manual trace
  • M-Mode: Distance and time measurements, heart rate calculation
  • User-selectable text and pictograms
  • User-defined, application-specific annotations Biopsy guidelines

External Data Management and Wireless

  • DICOM Image Management (TCP/IP):
    • Print and Store, Modality Work List
  • Storage Commit:
    • Modality, Perform, Procedure Step
  • PC Workstation Image Management (TCP/IP, USB):
    • SiteLink Image Manager – allows the transfer, archiving, viewing and printing of high-resolution bitmap images/clips, and batch compression to JPEG on PCs
    • Direct writing capability to USB 2.0 mass storage removable media (PC and MAC compatible)
    • Supported export formats are: MPEG-4 (H.264), JPEG, BMP, and HTML
    • SonoSite Education Key training video compatible
  • SonoSite Workflow Solutions (SWS™):
    • A suite of specialized tools to streamline exam management for billing, credentialing, EMR and image archiving

External Video and Audio

  • S-video (in/out) to VCR or DVD for record and playback
  • RGB or DVI output to an external LCD display
  • Composite video output (NTSC/PAL) to VCR or DVD, video printer or external LCD display
  • Audio output
  • Integrated speakers

H-Universal Stand and Peripherals

  • Transducer and gel holders
  • Optional Triple Transducer Connect (TTC) to quickly activate transducers electronically
  • Optional foot switch

Optional Peripherals

  • Printers: Medical-grade black and white or color
  • External storage devices: Medical-grade DVD
  • External data input devices: Barcode reader ECG module: 3-lead ECG – works with standard ECG leads and electrodes External analog ECG input also available
  • USB barcode reader

Broadband, Multifrequency Imaging

  • 2D / Tissue Harmonic Imaging / M-Mode
  • Velocity Colour Doppler / Colour Power Doppler
  • PW, PW Tissue Doppler and CW
  • Doppler angle, correct after freeze

Image Processing

  • SonoADAPT Tissue Optimization
  • SonoHD Imaging Technology
  • Advanced Needle Visualisation (SonoMBe Imaging)
  • Dual Imaging, Duplex Imaging, 2x pan/zoom capability, Dynamic range and gain

Transducer Types

  • Broadband and Multifrequency:
    • Linear Array, Curved Array, Phased Array, Multiplane TEE and Micro-Convex
  • Single Frequency:
    • Cardiac Static Pencil

Application Specific Calculations

  • OB/GYN/Fertility: Diameter/ellipse measurements, volume, ten follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user-selectable authors, ratios, amniotic fluid index, patient report, humerus and tibia measurement and charts
  • Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report
  • CIMT (Carotid Intima Media Thickness): Embedded SonoCalc IMT software (optional) – automatic edge detection with mean and maximum thickness reporting
  • Cardiac: Automated Cardiac Output package and patient report including ventricular, aortic and atrial measurements; ejection fraction, volume measurements, Simpson’s rule, continuity equation, pressure half-time and cardiac output; PA AT, TV E, A, PHT, TVI, MV time, Pulm Veins
  • Transcranial Doppler (TCD): Complete TCD package including Time Average Peak (TAP)

Compatible Transducers

  • L38xi
  • HFL38x
  • HFL50x
  • L25x
  • C11x
  • C60x
  • ICTx
  • P21x
  • P10x
  • SLAx
  • TOEx/TEEx
  • D2x
  • L52x (Vet)
