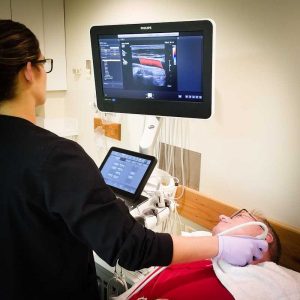

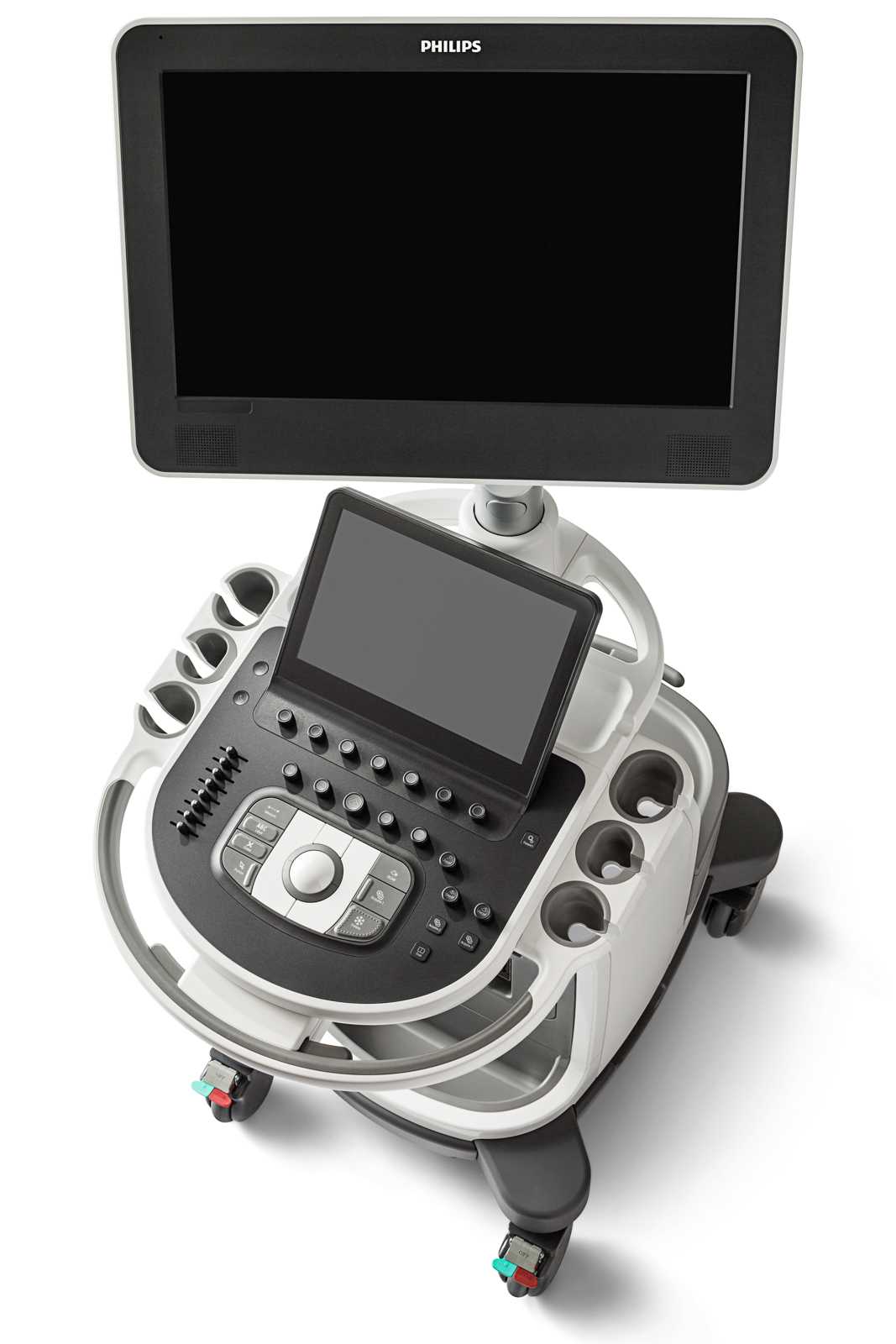

Philips Affiniti 70 Ultrasound system

Sale!

Original price was: $36,666.00.Current price is: $26,666.00.

The Philips Affiniti 70, is a high-end shared service ultrasound machine that was developed in 2014 from the top Epiq 7. The Affinity 70 looks nearly identical to the Epiq 5 and 7 plus offers many of the Very Same attributes such as single crystal PureWave transducers

In stock

SKU: Philips Affiniti 70 Category:

Philips Affiniti 70 ultrasound system for women’s healthcare

Philips Affiniti 70 Ultrasound system delivers a powerful mix of performance and workflow for diagnosis. Engineered for efficiency and dependability and powered by Philips demonstrated performance, it gets users diagnostic pictures, quickly  on the most technically difficult patients. Its layout and walk-up usability provide efficient maintenance every day.

The Philips Affiniti 70 is a complete echocardiography alternative that addresses the needs of a busy office or department while incorporating those inventions that make Philips ultrasound the international pioneer in echocardiography.

Philips Affiniti 70 precision beamforming, PureWave technology, Tissue-Specific Presets (TSP), and efficiency and automation tools provide both functionality and workflow for confident throughput. Designed around your workflow, the Philips Affiniti 70 provides mobility, ergonomics, and usability.

Philips-Affiniti-70-Ultrasound-systemThe Affiniti 70 also has many of the same technology as the Epiq series, including the amazing QLAB onboard quantification set and ShareWave elastography. The Philips Affiniti 70 is exceptional in the high-end price category in offering ShearWave. As a service ultrasound device that is shared the 70 excels at cardiology in addition to women’s health, vascular and radiology programs. Philips is well known for its imaging superiority over other brands, but the Philips Affiniti 70 is also rich with excellent image quality at its price level. Doctors who like the Affiniti 70, but do not need the transducers or ShearWave Elastography should consider the less costly Affiniti 50.

The Philips Affiniti 70 combines outstanding performance and effective workflow and attributes innovative Philips technologies. The Precision Beamforming delivers outstanding tissue uniformity and contrast resolution, excellent spatial, few artifacts, and decreased image jumble. Tissue-Specific Presets (TSPs) mechanically adjust over 7500 parameters to optimize the transducer to your particular test type, making excellent picture quality with little if any demand for picture adjustment. The Affiniti 70 Machine can also be equipped with automation features, for example, AutoSCAN and automobile Doppler, which reduce repetitive tasks and make obtaining a picture. Exam efficiency is delivered by Philips SmartExam-guided workflow.

Key Features:

  • 21.5” wide flat panel LCD display monitor
  • Fully articulating arm

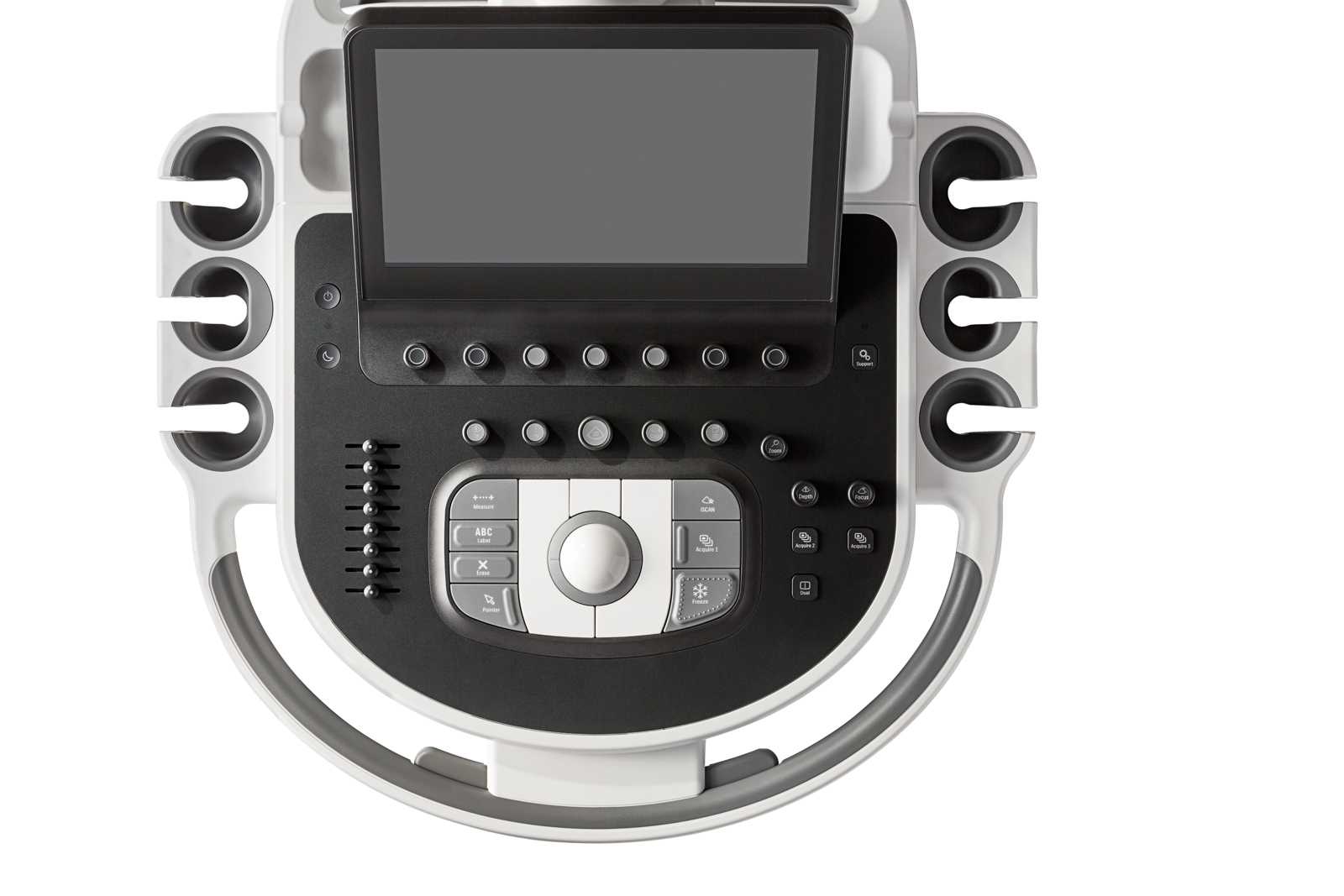

  • 2” Tablet-like widescreen touchscreen
  • 4 probe ports
  • TDI [Tissue Doppler Imaging]
  • THI [Tissue Harmonic Imaging]
  • TAC [Tissue aberration correction]
  • LVO [Left ventricular opacification]
  • CPA and Directional CPA [Color Power Angio]
  • Coded beamforming
  • Steerable CW Doppler
  • High-PRF PW Doppler
  • Auto Doppler optimization



Philips Affiniti 70 ultrasound system Brochure

APPLICATIONS

Abdominal: Yes
Women’s Health Care (GYN & Breast): Yes
OB: Yes
Fetal Echo: Yes
Vascular: Yes
TCD: Yes
Small Parts (Breast, Thyroid, Testis…): Yes
MSK/Anesthesiology: Yes
Pediatrics: Yes
Urology (Renal, Prostate…): Yes
Echocardiography_Adult: Yes
Interventional Cardiology: Yes
Echocardiography_Pediatric: Yes
Echocardiography_Neonate: Yes
Stress Echocardiography: Yes
Transesophageal Echo_Adult: Yes
Transesophageal Echo_Pediatric: Yes
Internal Medicine w/ Shared Service: Yes
Surgury: Yes
Interventional Radiology: Yes
Contrast Imaging _ General Imaging (Low MI): Yes
Contrast Imaging _ Cardiac (High or Low MI): Yes
Bowel Imaging: Yes
Strain Elastography: Yes
Shear Wave Elastography: Yes

Probes / Transducers

Endocavitary C9-4v [ 4 – 9 MHz ] 128 elements, 10mmR, 181° field of view
Endocavitary C10-4ec [ 4 – 10 MHz ] 128 elements, 8mmR, 147° field of view
Bi-plane Endocavitary BP10-5ec [ 5 – 10 MHz ] 96 elements, 8.8mmR, 150° field of view
PureWave Endocavitary C10-3v [ 3 – 10 MHz ] 128 elements, 11.5mmR, 163° field of view

Convex C6-2 [ 2 – 6 MHz ] 128 elements, 10mmR, 63.7° field of view
Convex C8-5 [ 5 – 8 MHz ] 128 elements, 14mmR, 122° field of view
PureWave Microconvex C9-2 [ 2 – 9 MHz ] 192 elements, 45mmR, 102° field of view
PureWave Convex C5-1 [ 1 – 5 MHz ] 160 elements, 45mmR, 111° field of view

4D Convex V6-2 [ 2 – 6 MHz ] 192 elements, 55mmR, 100° x 85° volume field of view
4D Endocavitary 3D9-3v [ 3 – 9 MHz ] 128 elements, 26.1mm, 156° x 85° volume field of view
4D Linear VL13-5 [ 5 – 13 MHz ] 192 elements, 38.4mm, 38 mm x 30° volume field of view

Linear L18-5 [ 5 – 18 MHz ] 288 elements, 38.9mm, ultra-fine pitch
Intraoperative Linear L15-7io [ 7 – 15 MHz ] 128 elements, 23mm,
Linear L12-5 50 [ 5 – 12 MHz ] 256 elements, 50mm, fine pitch
Linear L12-3 [ 3 – 12 MHz ] 160 elements, 38mm, fine angle steering
Linear L12-4 [ 4 – 12 MHz ] 128 elements, 34mm, fine angle steering

Cardiac Sector S4-2 [ 2 – 4 MHz ] 80 elements, 5mm
PureWave Cardiac Sector S5-1 [ 1 – 5 MHz ] 80 elements, 20.3mm
Pediatric Cardiac Sector S8-3 [ 3 – 8 MHz ] 96 elements, 15.4mm
Neonatal Cardiac Sector S12-4 [ 4 – 12 MHz ] 96 elements, 9.78mm

Pediatric TEE transesophegeal S7-3t [ 3 – 7 MHz ] 48 elements, 5mm
xMATRIX TEE transesophegeal X7-2t [ 2 – 7 MHz ] 2,500 elements

Pedoff (CW Transducer) D5cwc [ 5 MHz ] Deep venous and arterial applications, non-imaging
Pedoff (CW Transducer) D2cwc [ 2 MHz ] Adult cardiology applications, non-imaging
Pedoff (PW Transducer) D2tcd [ 2 MHz ] Transcranial Doppler applications, non-imaging

Affiniti 70 Transducers: 4D & Matrix

The Philips Affiniti 70 supports four advanced single crystal PureWave transducers; the [ 1 – 5 MHz ] C5-1 convex, the [ 2 – 9 MHz ] C9-2 convex meant for pediatric work, the [ 3 – 10 MHz ] C10-3v endovaginal, and the [ 1 – 5 MHz ] S5-1 cardiac sector probe. The Affiniti 70 also supports two transesophegeal or TEE probes, the [ 3 – 7 MHz ] S7-3t pediatric and the [ 2 – 7 MHz ] X7-2t adult. The X7-2t is an xMatrix transducer but on the Affiniti 70 it only functions in 2D mode. The Epiq line and the CX50 however can use the full xPlane and 4D functions of the X7-2t. The Philips Affiniti 70 also has the [ 5 – 10 MHz ] biplane endocavitary probe that allows scanning in 2 planes without moving the transducer. Another specialty transducer is the [ 7 – 15 MHz ] L15-7io intraoperative linear, also known as a “hockey stick” probe for it’s distinctive shape that allows it to fit into tight surgical applications or small parts scanning.

Popular Philips Affiniti 70 Probes

The C5-1 PureWave is the most popular convex probe for the Affiniti 70 because of its superb image quality and penetration. Likewise the C10-3v PureWave is the most popular endovaginal for the same reasons. The [ 3 – 12 MHz ] L12-3 is the most popular linear on the Affiniti 70 because it is affordable, and strong in both vascular and MSK imaging. For cardiac scanning the [ 1 – 5 MHz ]
S5-1 is the most commonly selected, again for the improved image quality at low MHz ranges that would normally lose clarity as the penetration increased.

IMAGING MODES:

2D, M mode: Yes
M-color Flow Mode: Yes
Anatomical M-mode: Yes
Trapezoidal Mode: Yes
Color, Power Angio, Pulse Wave Doppler: Yes
Bi-directional Power (HD FLOW): Yes
SCW Doppler: Yes
Tissue Doppler Imaging: Yes
Freehand 3D: Yes
Live 3/4D OB/GYN: Yes
HD Live: No
STIC (Spatio-Temporal Image Correlation): Yes
Live 3D Echo: No
Stress Echo: Yes
Strain and Strain Rate (Cardiac): Yes
B Flow: No
Panoramic Imaging (Logiq view): Yes
Contrast Imaging – Cardiac: Yes
Contrast Imaging – General Imaging: Yes
Strain-based Elastography: Yes
Shear Wave Elastography: Yes

Accessories

Philips Affiniti 70 Accessories

Sony UPD-897MD Digital Black & white thermal printer
Sony UPD-898MD Digital Black & white thermal printer
Sony UPX-898MD Digital Black & white thermal printer
Sony UP-D711MD Digital Black & with thermal printer
Sony UPD-25MD Digital Color thermal printer
Mitsubishi P95DW Digital Black & white thermal printer
Mitsubishi CP30DW Digital Color thermal printer
Sony DVO-1000 DVD Recorder
CIVCO disposable biopsy guides (for Convex, Linear and Endo-cavity transducers)

Philips Affiniti 70 Supplies

Aquasonic ultrasound gel
Sono ultrasound wipes
Sony UPP-110HG thermal printing paper
Sony UPP-84HQ thermal printing paper
Sony UPC-21L color thermal printing pack
Mitsubishi CK30L printing paper
Mitsubishi K95HG high gloss thermal printing paper

Philips Affiniti 70 ports

4 active transducer ports
DICOM
Ethernet port
HDMI port
USB port
2 on-board peripheral connections via USB
